Description

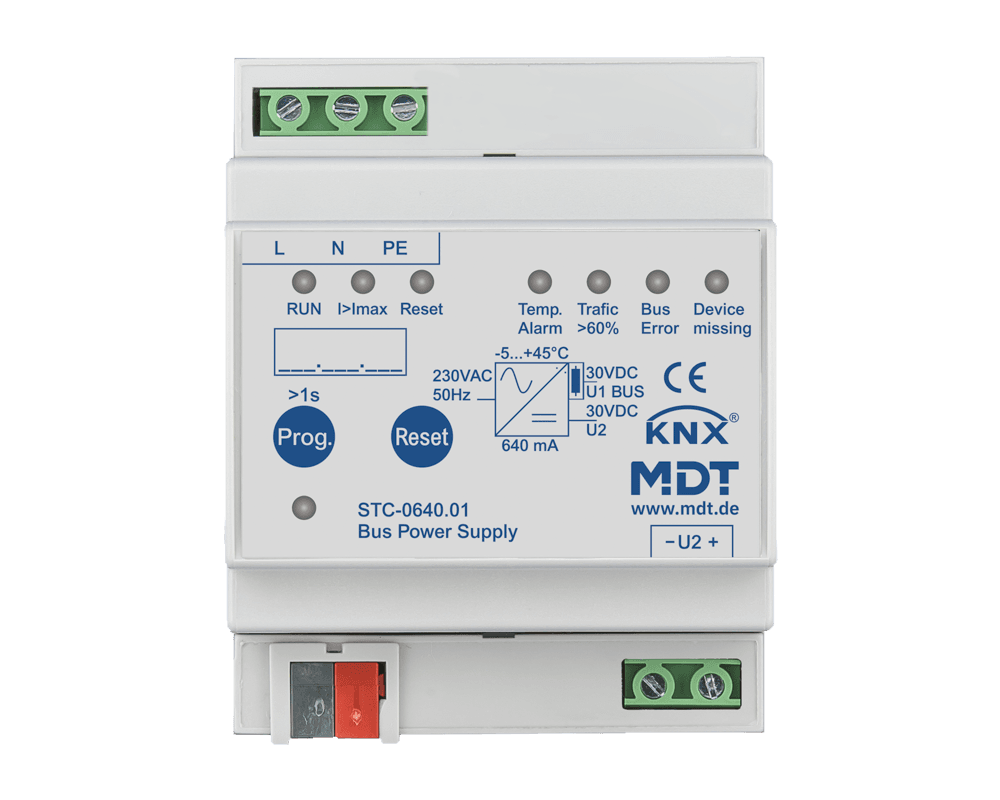

Version with Nominal current 640 mA
· KNX Bus Power Supply with integrated choke
· Power supply 230 V AC
· Nominal current 640 mA, continuous current 960 mA, peak current 1200 mA
· Short circuit proof
· Overload protected
· Additional unchoked output U2
· Integrated Bus coupler with diagnostic functions:
· Bus power, Bus current, Bus overload
· Mains power failure/recovery
· All events are stored in the ring storage with time a stamp
· Readout of the ring memory via a 14 Byte Telegram
· Safety function to detect a failed device in the KNX line
