Description

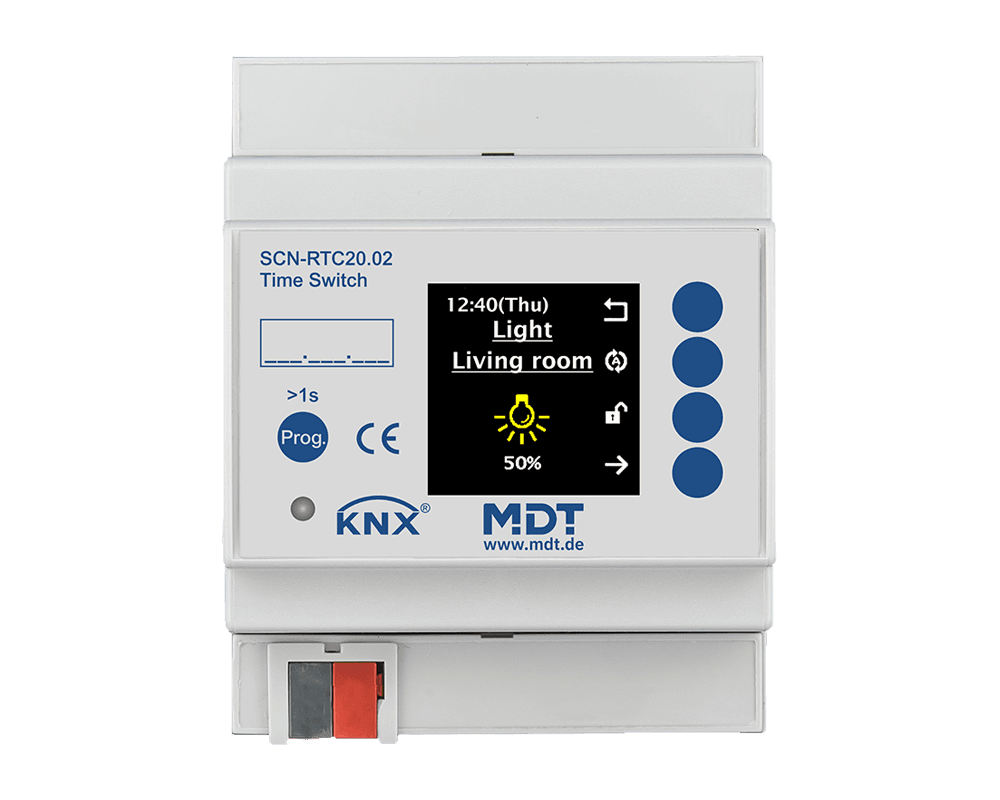

Time Switch with daily-/weekly-/astro switch function. Version in Modular DIN Rail Component (MDRC) enclosure
· Time switch with 20 channels (8 switching times per channel)
· Switch times adjustable with the ETS and on the device
· Daily-/weekly-/astro switch function, power reserve
· Automatic bank holiday calculation
· Output object for Date and Time (Master)
· Date and time adjustable over the KNX Bus (Slave)
· Specific channel for day/night function
· Blind function to control height and slats per channel
· Output object for azimuth and elevation
· Security against unauthorised access through code lock function
· Catch up function for switching times, adjustable per channel
· Cyclic sending in normal operation
· Threshold value comparator 1 – 4 Byte
· 8 logic blocks each with 4 inputs
