Description

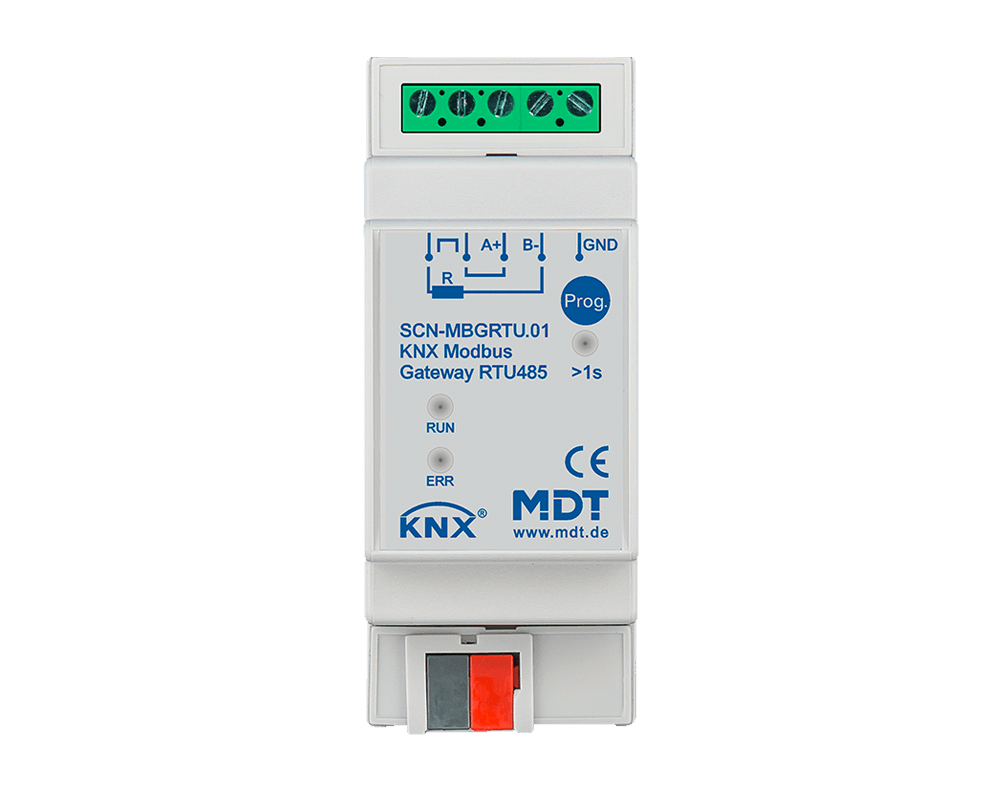

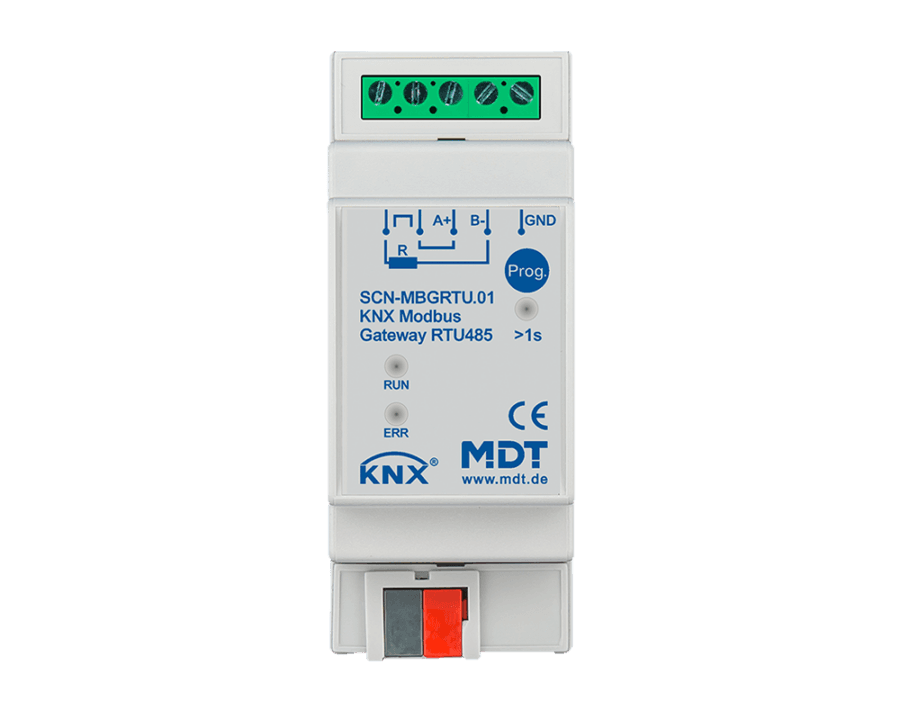

Version for bidirectional data exchange between Modbus RTU- and KNX-products
· 200 freely configurable channels
· Master/Slave mode individually selectable for each channel
· Slave ID can be set individually for each channel
· User friendly scaling settings
· Conversion of value ranges for each channel
· Comprehensive binary and arithmetic mathematical functions configurable for each channel
· Modbus multi-read/write functionality
· Read/write function with 2 objects per channel
· 20 value comparison blocks each with 4 comparable values
· Message texts to indicate device status
· Universally applicable, supports a wide range of Modbus and KNX data types
· No additional power supply required
· Power supplied through the KNX bus
· Modbus and KNX bus galvanically isolated
