Description

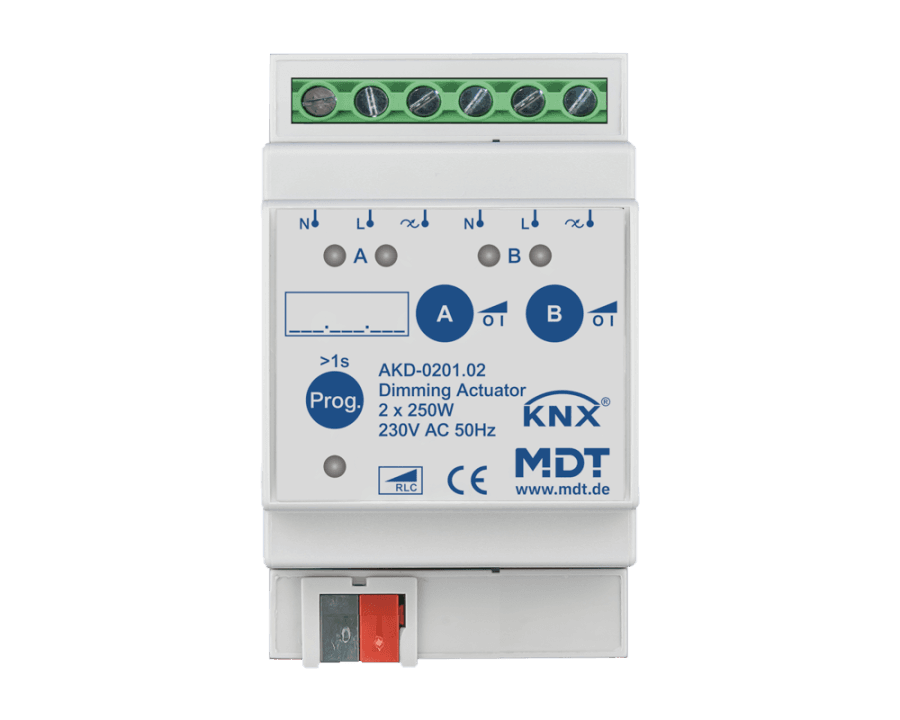

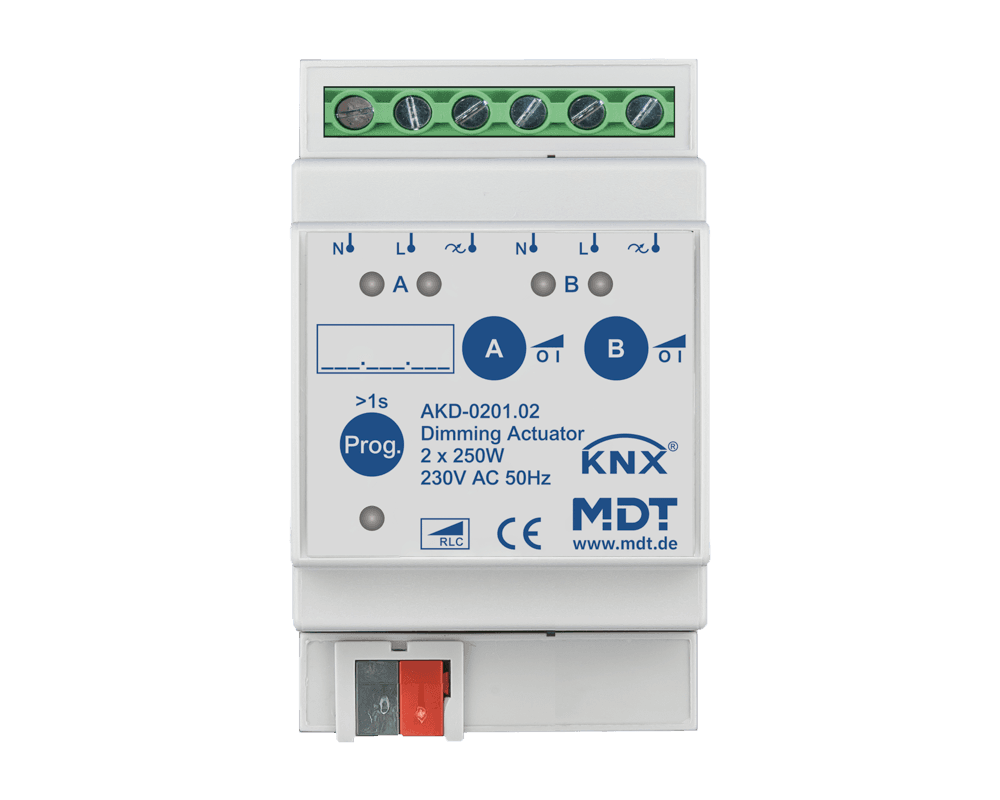

To switch and dim 230 V Lights. Nominal rating 2 x 250 W or 1 x 500 W
· Comprehensive application
· Optimised for dimmable LED lights (ab 2 W)
· for HV-Halogen lamps and LV-Halogen lamps with trafo/ECG
· Selectable operation of leading-/trailing-edge dimming
· Measurement of the effective power
· Integrated diagnostic function with plain text message
· Overload/short-circuit and temperature protection with alarm message
· Time functions (switch on-/switch off delay, staircase light function)
· Automatic time dependent dimming
· Soft start, global and individual Dimming speeds
· Day/Night function
· Push-button for manual operation and LED Indicator per channel
· Parallel operation of two channels with a total load of 500 W
· Separate L-/N- connection for each channel, different phases possible (L1, L2, L3)
