Description

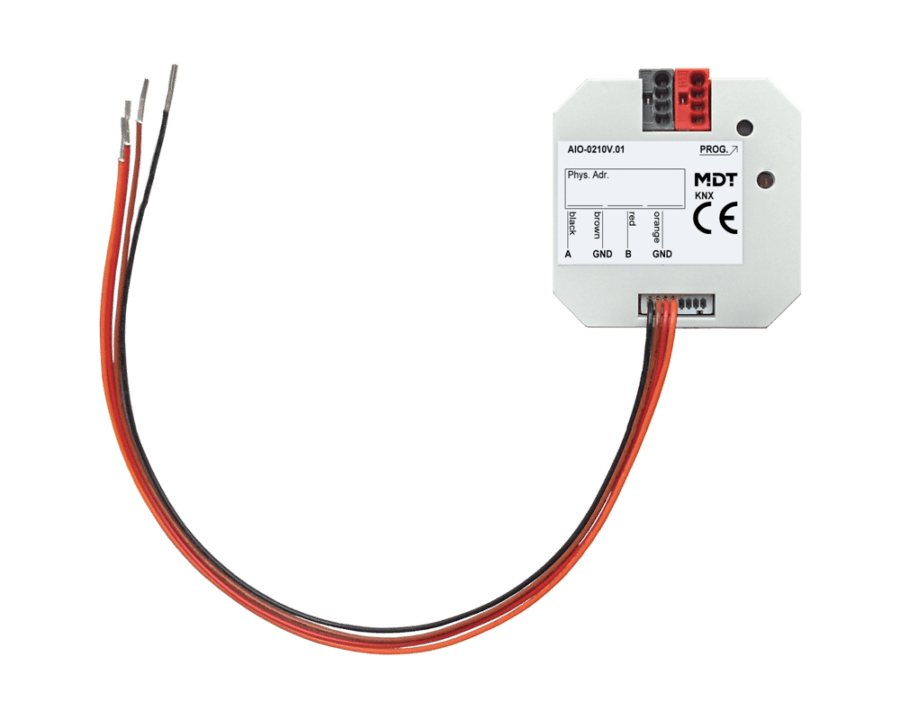

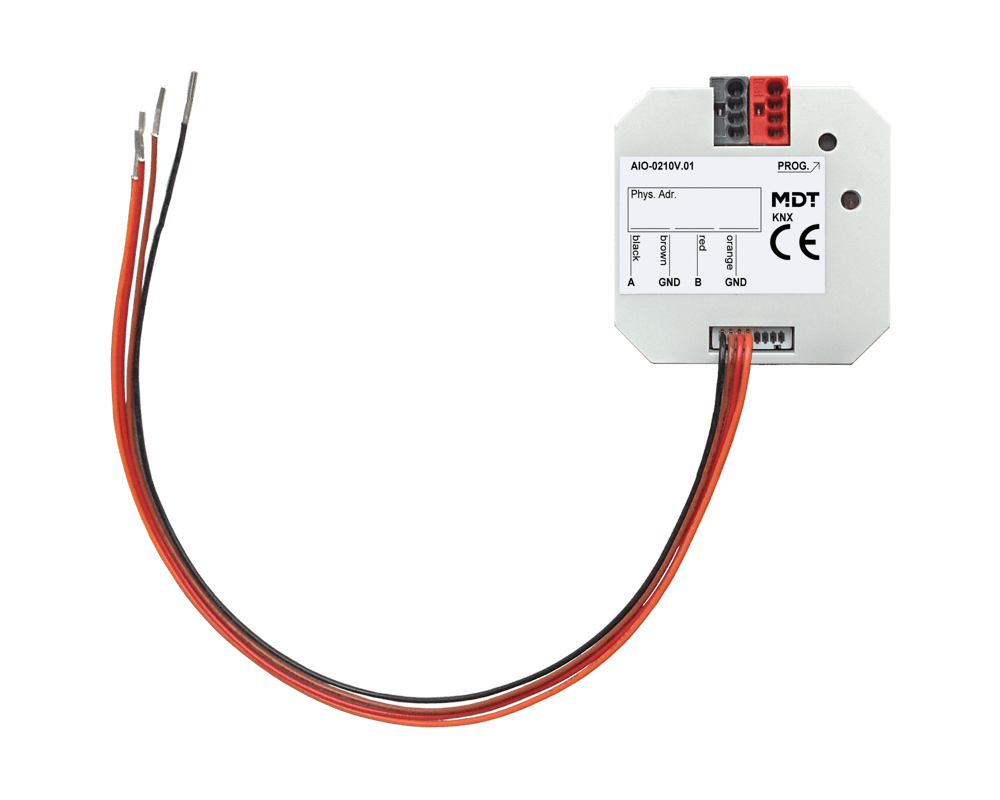

Suitable as an analogue output to control ventilation systems and other devices with a 0-10 V input. Equally suitable as an analogue input to log RPM or other 0-10 V measured data
· Each channel can be independently configured (in-/output)
· In-/output galvanically isolated from the KNX Bus
· In-/output have a common GND
· Voltage for output operation is generated in the actuator
· No external power supply required
· Input mode: Sensor type 0-10 V / 2-10 V or 0-20 mA / 2-20 mA (selectable), measured value scaling, adjustable data point types, min/max values, wire break detection, threshold value- and step control function
· Output mode: 0-10 V, selectable data point type, control input via 1 bit / 1 byte / 2 bytes, lock function, emergency mode, Day/Night function to limit the control value
· Installation in an installation box
· Dimensions (H x W x D): 41 x 41 x 12 mm
· Fast application download (long frame support as of ETS 5)
